Shiny for Python

Deepsha Menghani

Who am I

Data Scientist manager at Microsoft…..

The biggest career transition of my life!

Data Scientist manager at Microsoft…..

And a parent as of a month ago!

Let’s talk Shiny

Shiny: Started with R and now we Pythoning!

https://shiny.posit.co/py/

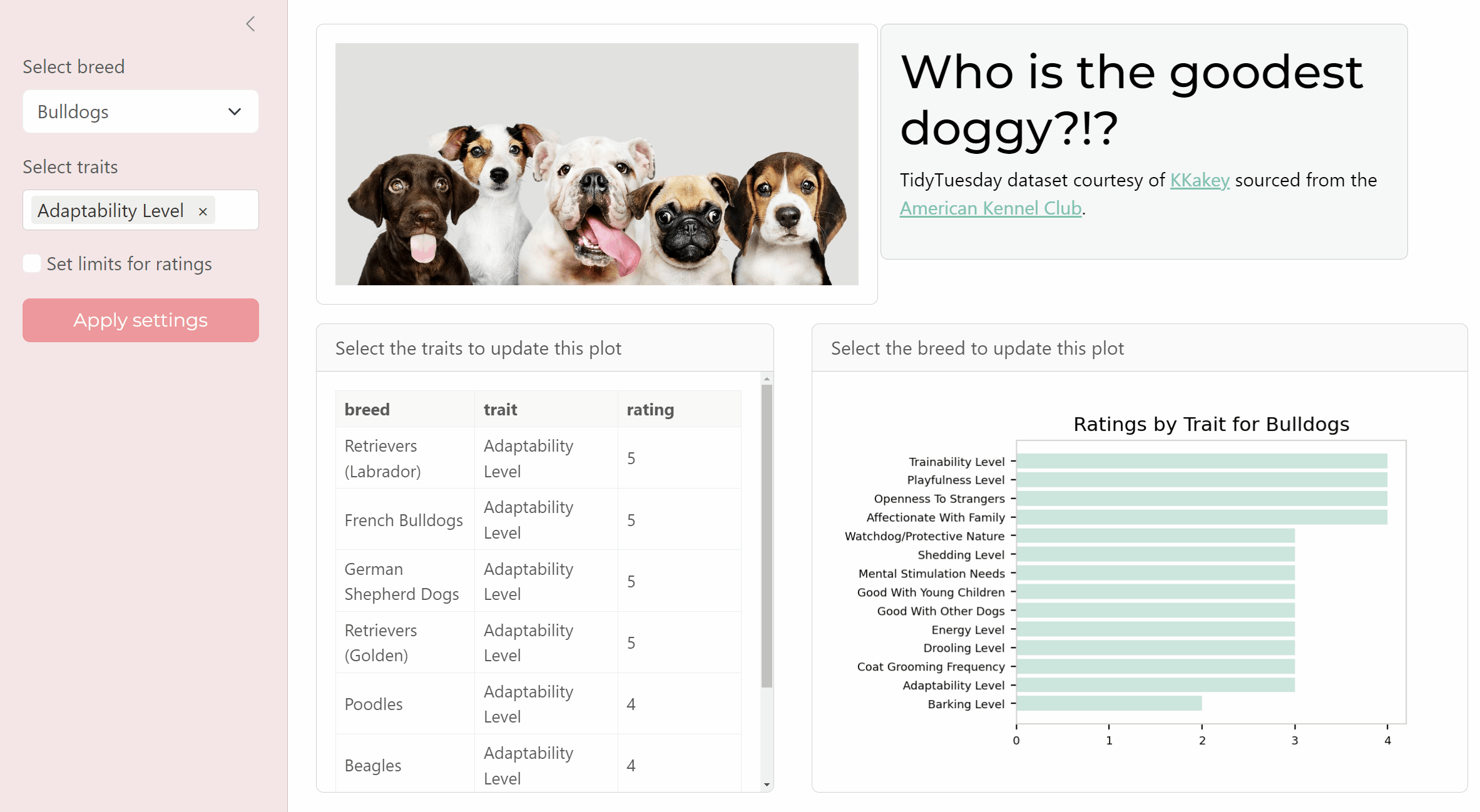

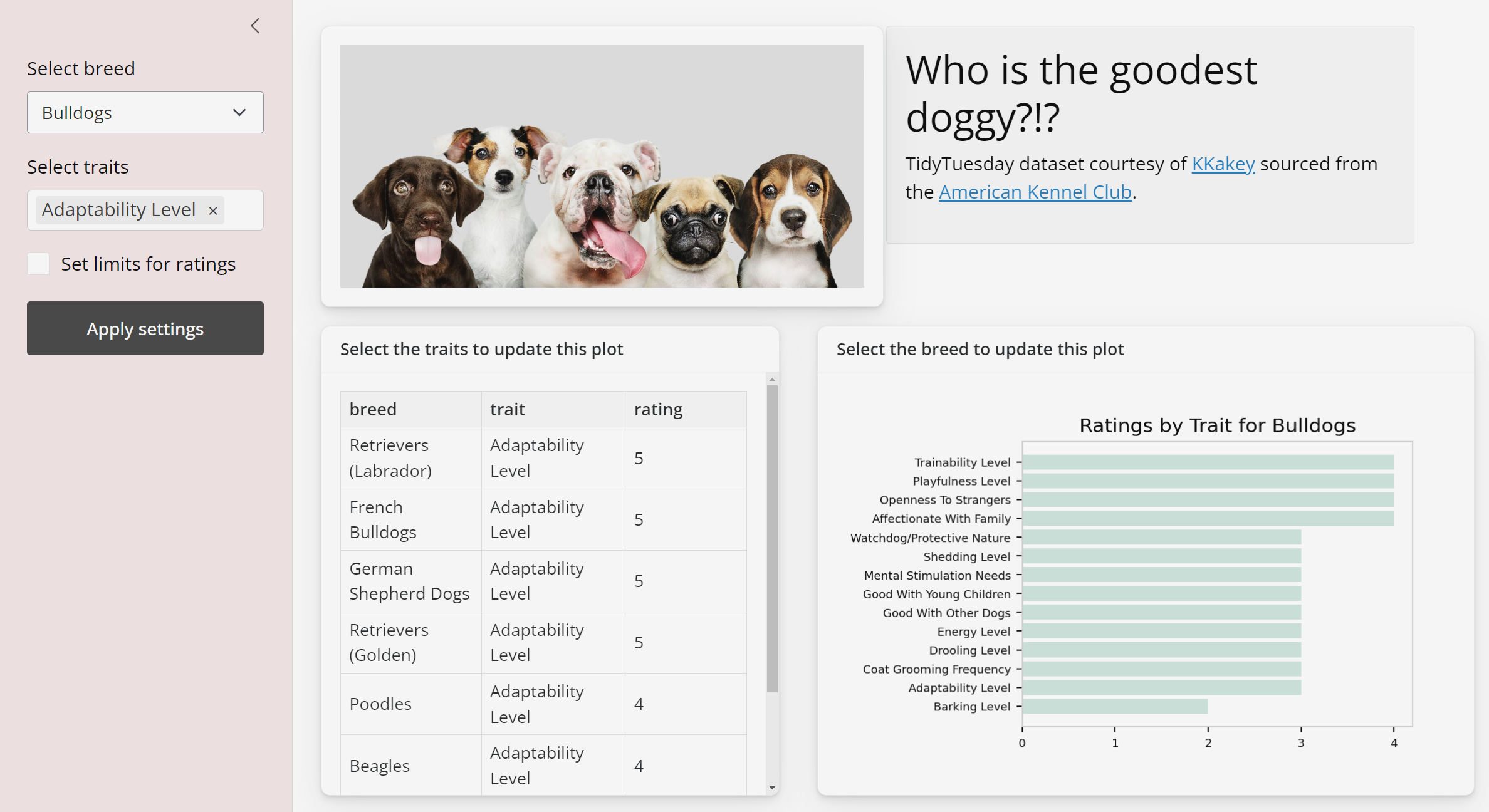

Let’s create this dog characteristics dashboard

Data source: TidyTuesday

Some initial setup

1. Install Shiny for Python extension (For VSCode)
2. Create a virtual environment for your project (just best practice)
3. Install the required packages by either running individual commands like “pip install shiny” or installing all packages by running “pip install -r requirements.txt”

The basic app commands and structure to get started

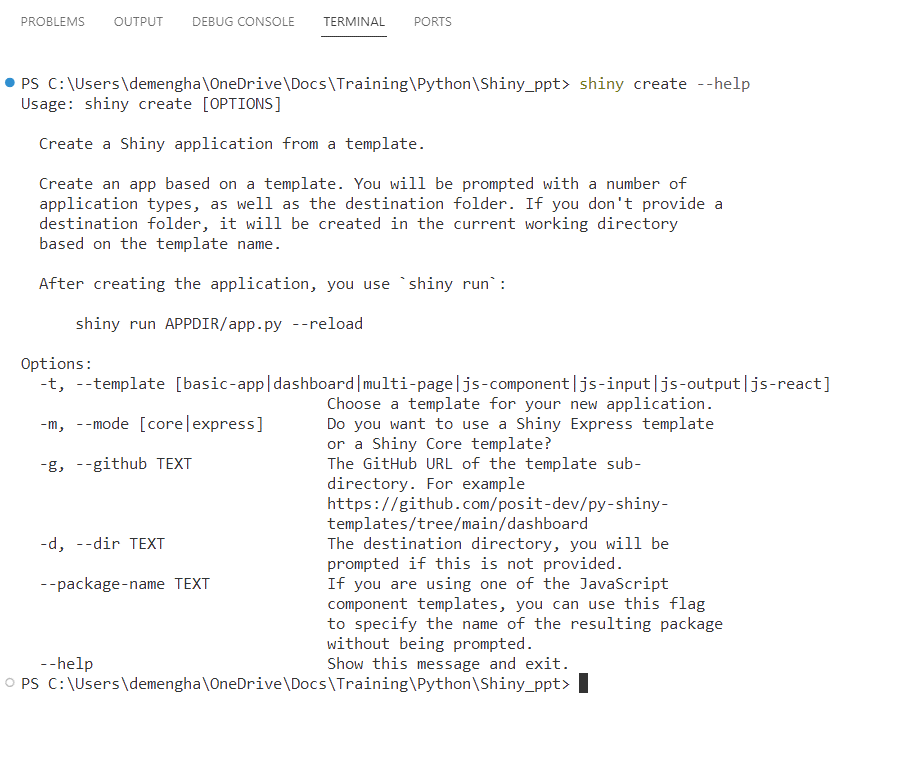

Shiny create - -help

The base components

1.0 The code structure of a basic app

Shiny create -t basic-app

from shiny import App, render, ui

app_ui = ui.page_fluid(
    ui.panel_title("Hello Shiny!"),
    ui.input_slider("n", "N", 0, 100, 20),
    ui.output_text_verbatim("txt"),
)

def server(input, output, session):
    @render.text
    def txt():
        return f"n*2 is {input.n() * 2}"

app = App(app_ui, server)

2.0 Personalizing the app

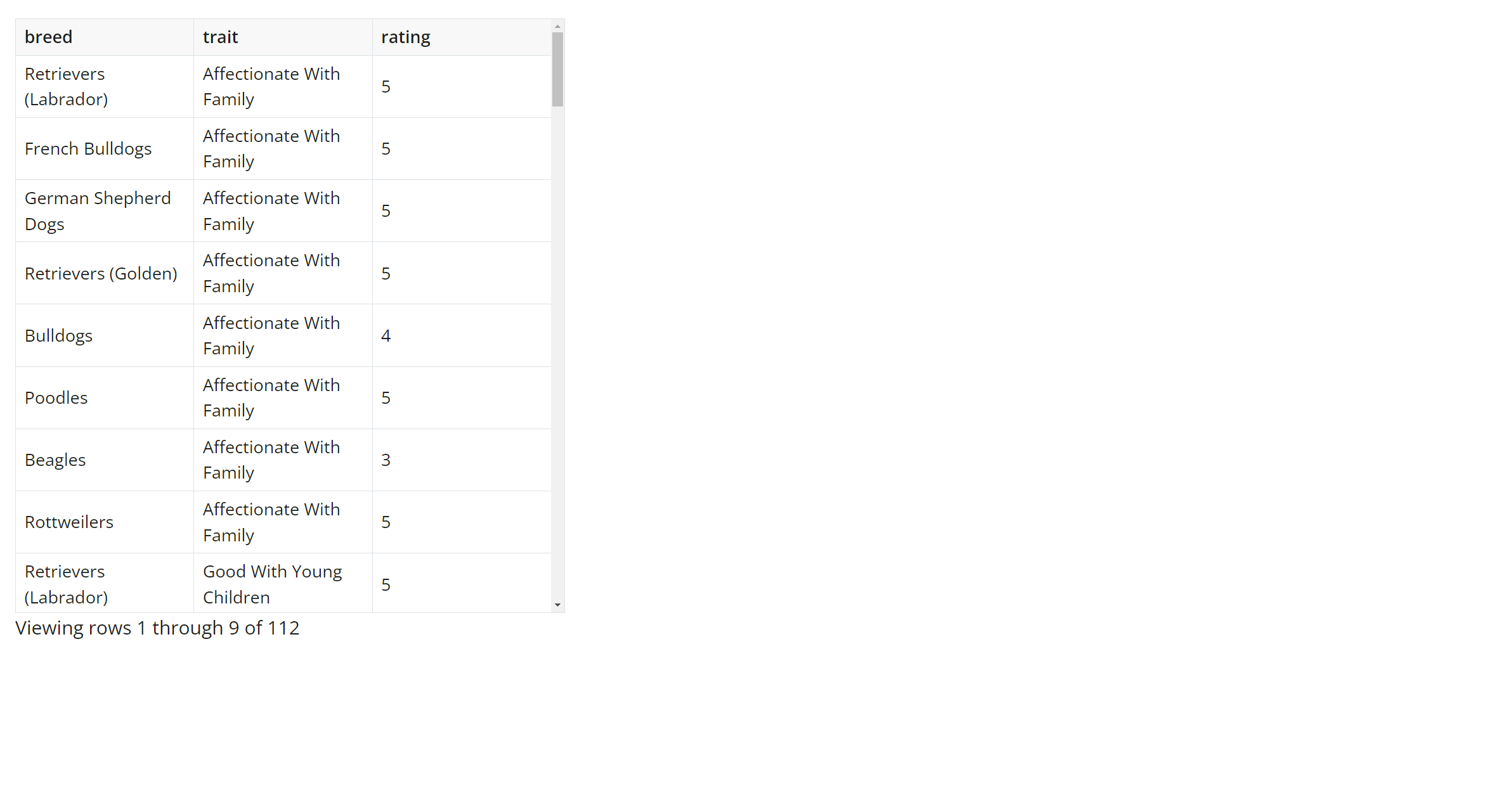

2.1 Adding a data frame output

from shiny import App, render, ui
import pandas as pd
from pathlib import Path

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")

app_ui = ui.page_fillable(
    ui.output_data_frame("dog_df")
)

def server(input, output, session):
    @render.data_frame
    def dog_df():
        return df

app = App(app_ui, server)

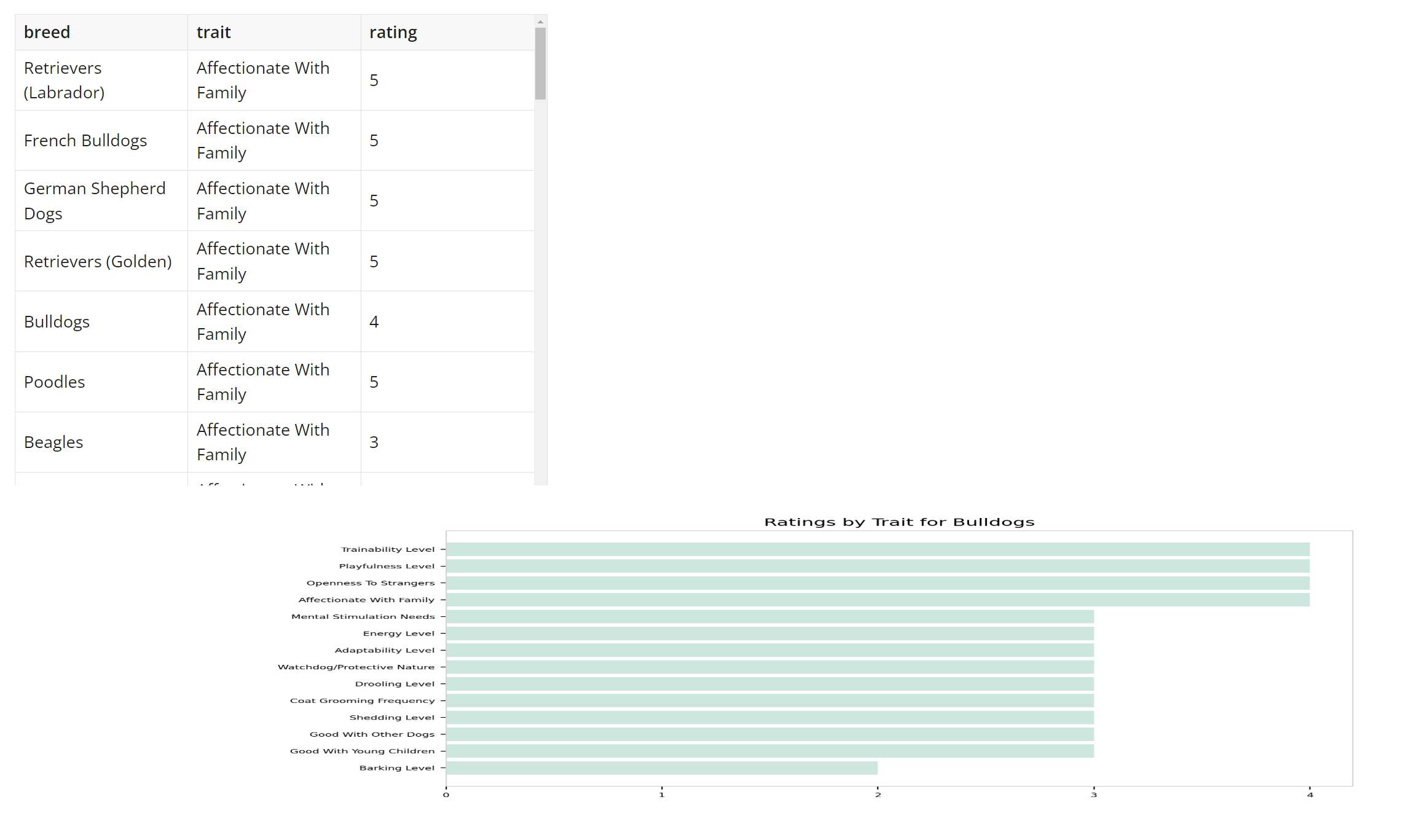

2.2 Adding a plot output

from shiny import App, render, ui
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")

app_ui = ui.page_fillable(
    ui.output_data_frame("dog_df"),
    ui.output_plot("breed_plot")
)

def server(input, output, session):
    @render.data_frame
    def dog_df():
        return df

    @render.plot
    def breed_plot():
        fig = create_trait_rating_plot(df, "Bulldogs")
        return fig

app = App(app_ui, server)

3.0 Sidebar and filters

3.1 Adding sidebar layout and filters

from shiny import App, render, ui
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs")
        ),
        ui.output_data_frame("dog_df"),
        ui.output_plot("breed_plot")
    ),
)

def server(input, output, session):
    @render.data_frame
    def dog_df():
        return df

    @render.plot
    def breed_plot():
        fig = create_trait_rating_plot(df, input.inputbreed())
        return fig

app = App(app_ui, server)

3.2 Adding selectize filter

from shiny import App, render, ui
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
        ),
        ui.output_data_frame("dog_df"),
        ui.output_plot("breed_plot")
    ),
)

def server(input, output, session):
    @render.data_frame
    def dog_df():
        filtered_df = df[(df['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    def breed_plot():
        df_updated = df.copy()
        fig = create_trait_rating_plot(df_updated, input.inputbreed())
        return fig

app = App(app_ui, server)

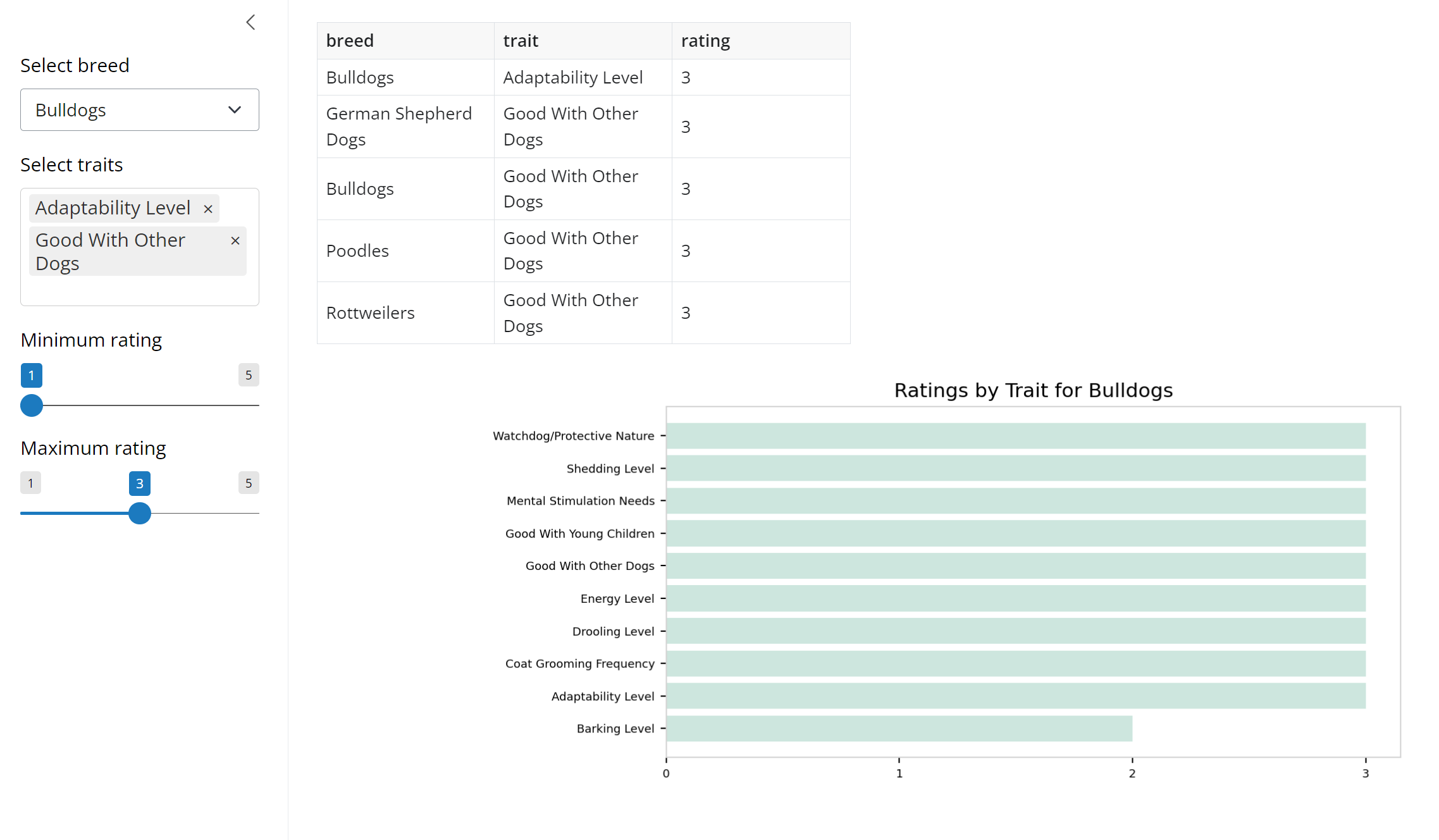

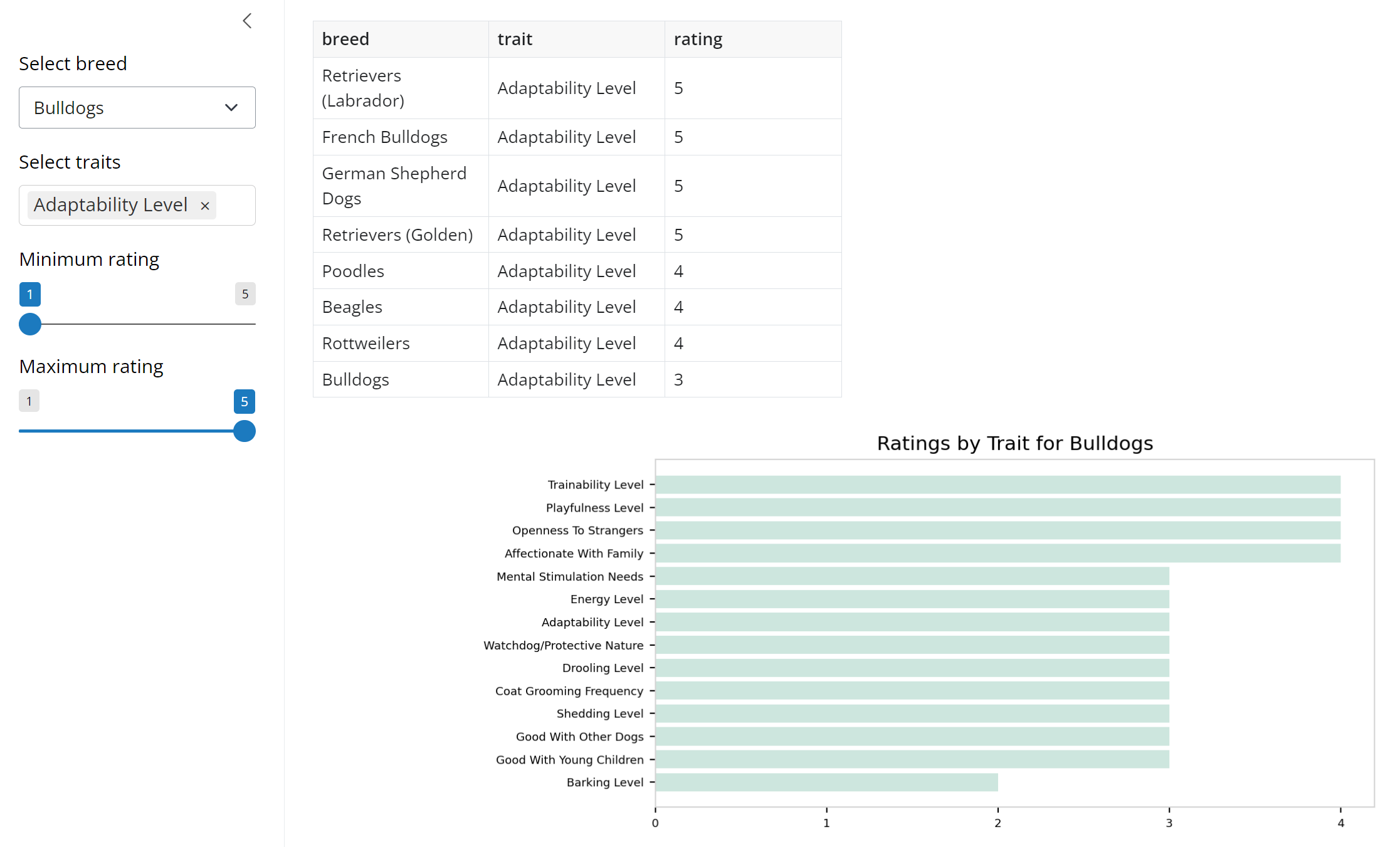

3.3 Adding slider inputs

from shiny import App, render, ui
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
            ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
        ),
        ui.output_data_frame("dog_df"),
        ui.output_plot("breed_plot")
    ),
)

def server(input, output, session):
    @render.data_frame
    def dog_df():
        filtered_df = df[(df['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    def breed_plot():
        df_updated = df.copy()
        fig = create_trait_rating_plot(df_updated, input.inputbreed())
        return fig

app = App(app_ui, server)

3.4 Using reactive calc to filter across multiple outputs

from shiny import App, render, ui, reactive
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
            ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
        ),
        ui.output_data_frame("dog_df"),
        ui.output_plot("breed_plot")
    ),
)

def server(input, output, session):
    @reactive.Calc
    def filtered_ratings():
        filtered_rating = df[(df['rating'] >= input.ratingmin()) &
                     (df['rating'] <= input.ratingmax())]
        return filtered_rating.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.data_frame
    def dog_df():
        filtered_df = filtered_ratings()[(filtered_ratings()['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    def breed_plot():
        fig = create_trait_rating_plot(filtered_ratings(), input.inputbreed())
        return fig

app = App(app_ui, server)

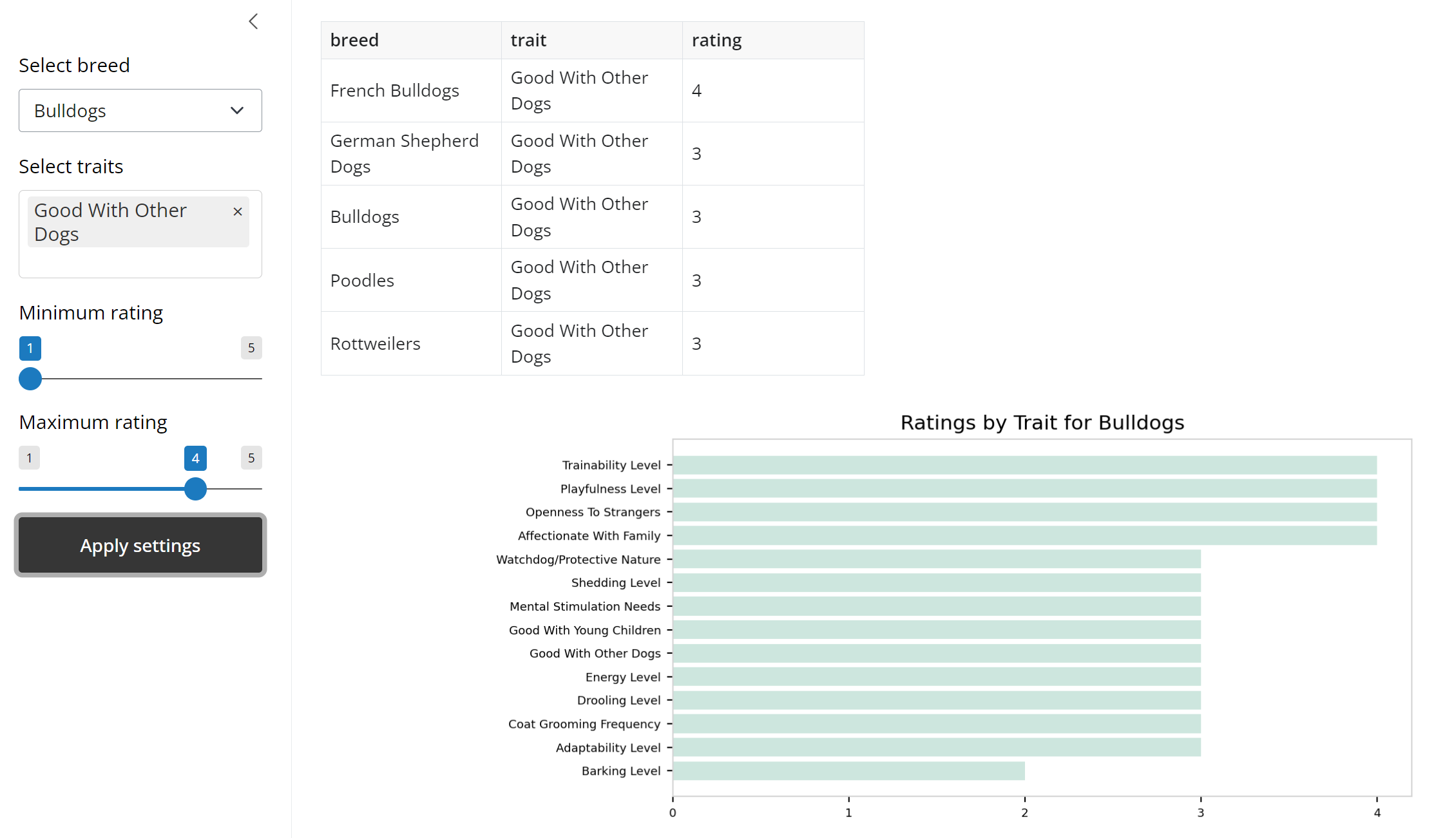

3.5 Action buttons

from shiny import App, render, ui, reactive
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
            ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
            ui.input_action_button("apply", "Apply settings", class_="btn-secondary"),
        ),
        ui.output_data_frame("dog_df"),
        ui.output_plot("breed_plot")
    ),
)

def server(input, output, session):
    @reactive.Calc
    def filtered_ratings():
        filtered_rating = df[(df['rating'] >= input.ratingmin()) &
                     (df['rating'] <= input.ratingmax())]
        return filtered_rating.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.data_frame
    @reactive.event(input.apply, ignore_none=False)
    def dog_df():
        filtered_df = filtered_ratings()[(filtered_ratings()['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    @reactive.event(input.apply, ignore_none=False)
    def breed_plot():
        fig = create_trait_rating_plot(filtered_ratings(), input.inputbreed())
        return fig

app = App(app_ui, server)

4.0 Columns and ui.card layouts

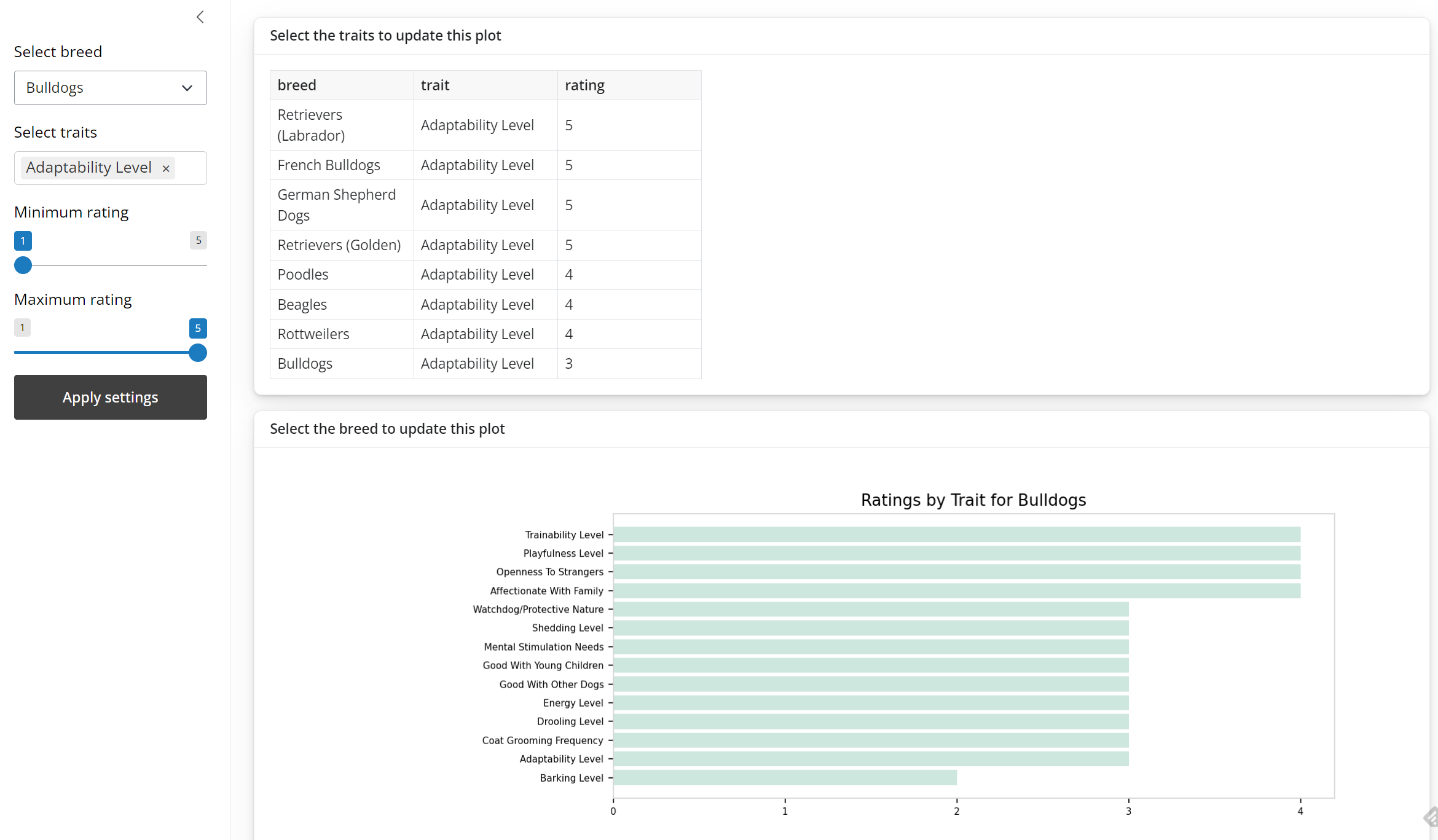

4.1 Adding space around outputs with ui.card

from shiny import App, render, ui, reactive
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
            ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
            ui.input_action_button("apply", "Apply settings", class_="btn-secondary"),
        ),
        ui.card(
            ui.card_header("Select the traits to update this plot"),
            ui.output_data_frame("dog_df"),
        ),
        ui.card(
            ui.card_header("Select the breed to update this plot"),
            ui.output_plot("breed_plot")
        )
    ),
)

def server(input, output, session):
    @reactive.Calc
    def filtered_ratings():
        filtered_rating = df[(df['rating'] >= input.ratingmin()) &
                     (df['rating'] <= input.ratingmax())]
        return filtered_rating.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.data_frame
    @reactive.event(input.apply, ignore_none=False)
    def dog_df():
        filtered_df = filtered_ratings()[(filtered_ratings()['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    @reactive.event(input.apply, ignore_none=False)
    def breed_plot():
        fig = create_trait_rating_plot(filtered_ratings(), input.inputbreed())
        return fig

app = App(app_ui, server)

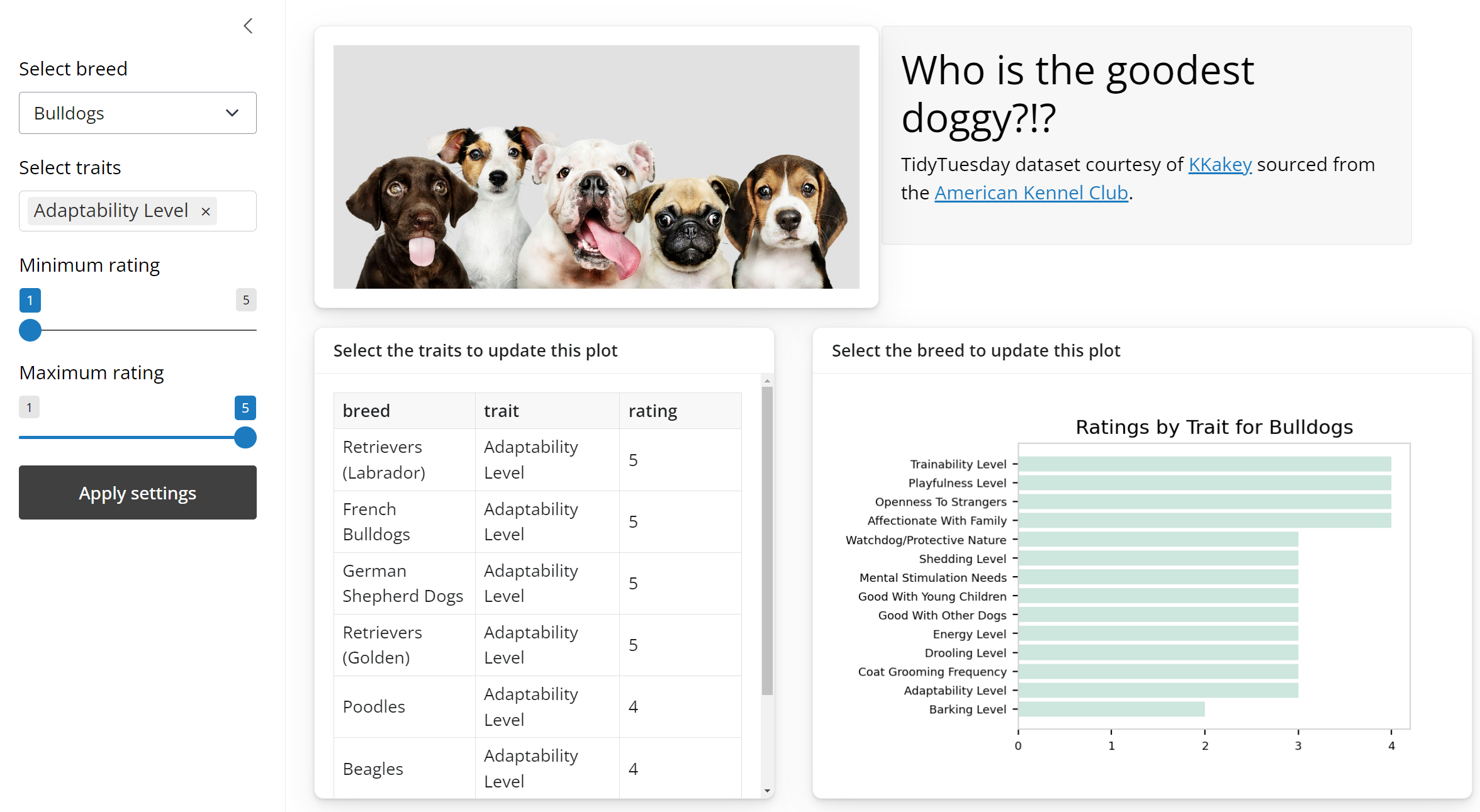

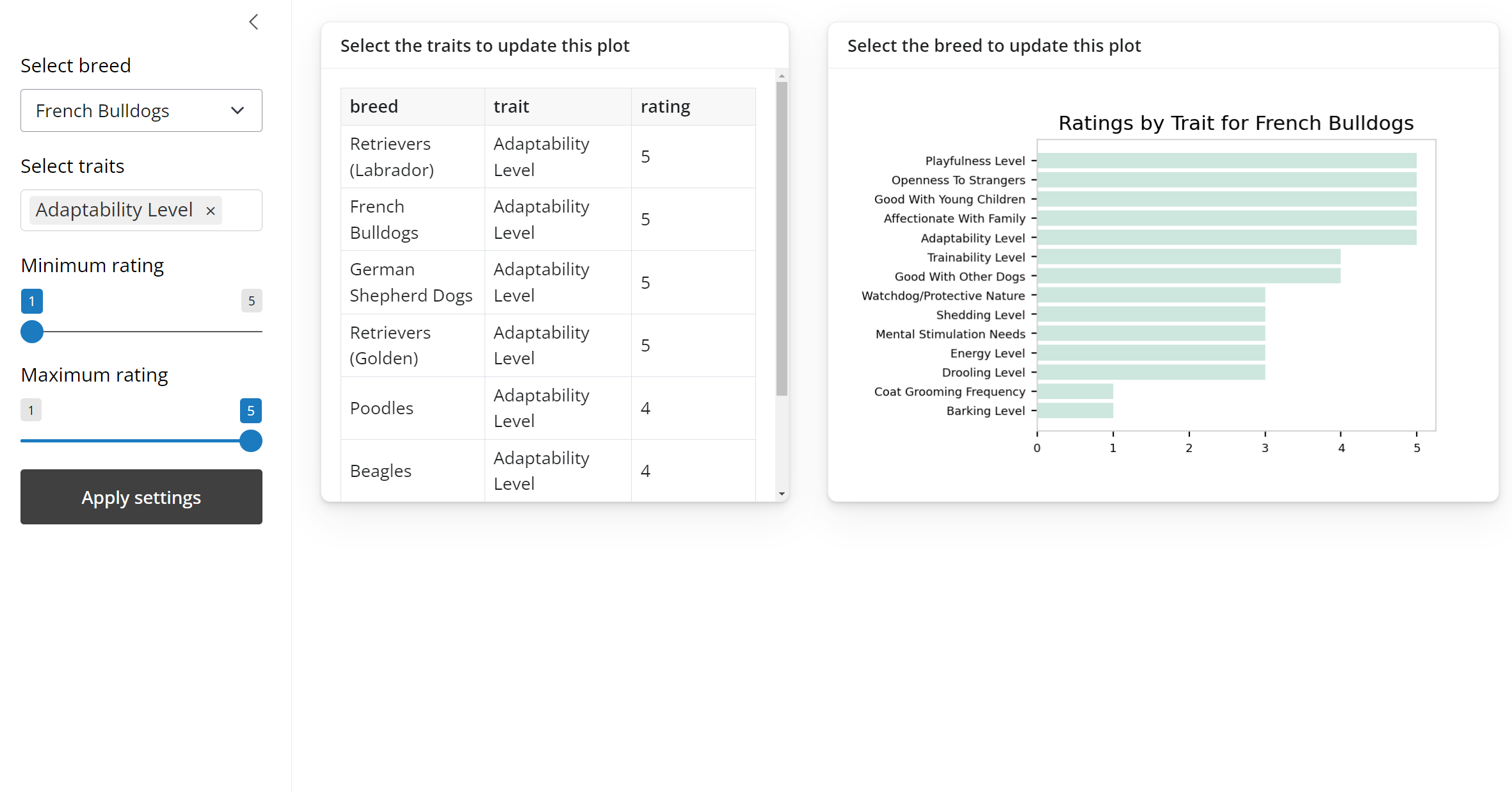

4.2 Adding a column layout

from shiny import App, render, ui, reactive
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
            ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
            ui.input_action_button("apply", "Apply settings", class_="btn-secondary"),
        ),
        ui.layout_columns(
            ui.card(
            ui.card_header("Select the traits to update this plot"),
            ui.output_data_frame("dog_df"),
            ),
            ui.card(
                ui.card_header("Select the breed to update this plot"),
                ui.output_plot("breed_plot")
            ),
            gap = "2rem",
            col_widths={"sm": (5, 7)},
            height = "400px"
        )
    ),
)

def server(input, output, session):
    @reactive.Calc
    def filtered_ratings():
        filtered_rating = df[(df['rating'] >= input.ratingmin()) &
                     (df['rating'] <= input.ratingmax())]
        return filtered_rating.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.data_frame
    @reactive.event(input.apply, ignore_none=False)
    def dog_df():
        filtered_df = filtered_ratings()[(filtered_ratings()['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    @reactive.event(input.apply, ignore_none=False)
    def breed_plot():
        fig = create_trait_rating_plot(filtered_ratings(), input.inputbreed())
        return fig

app = App(app_ui, server)

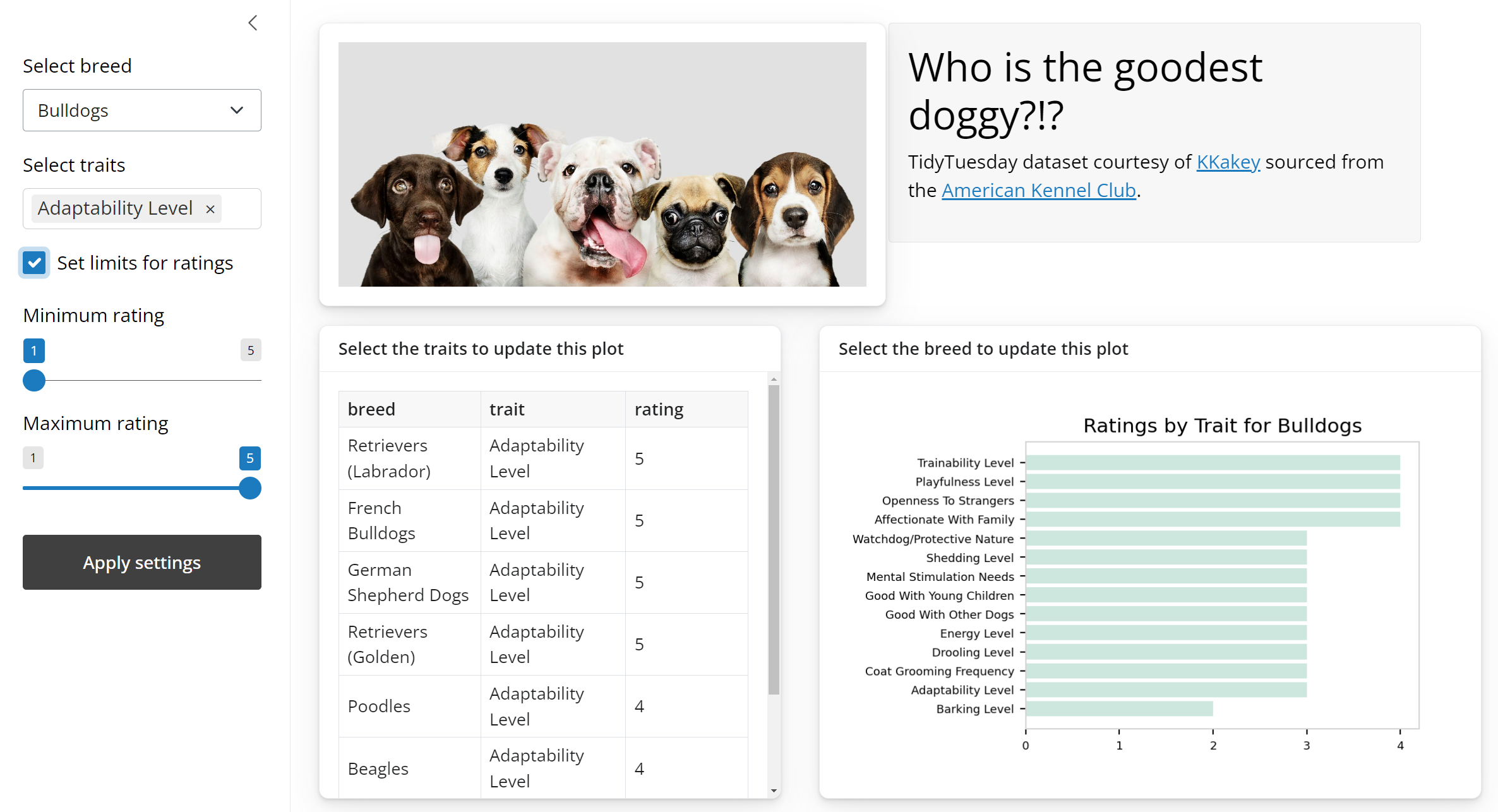

5.0 Images and text

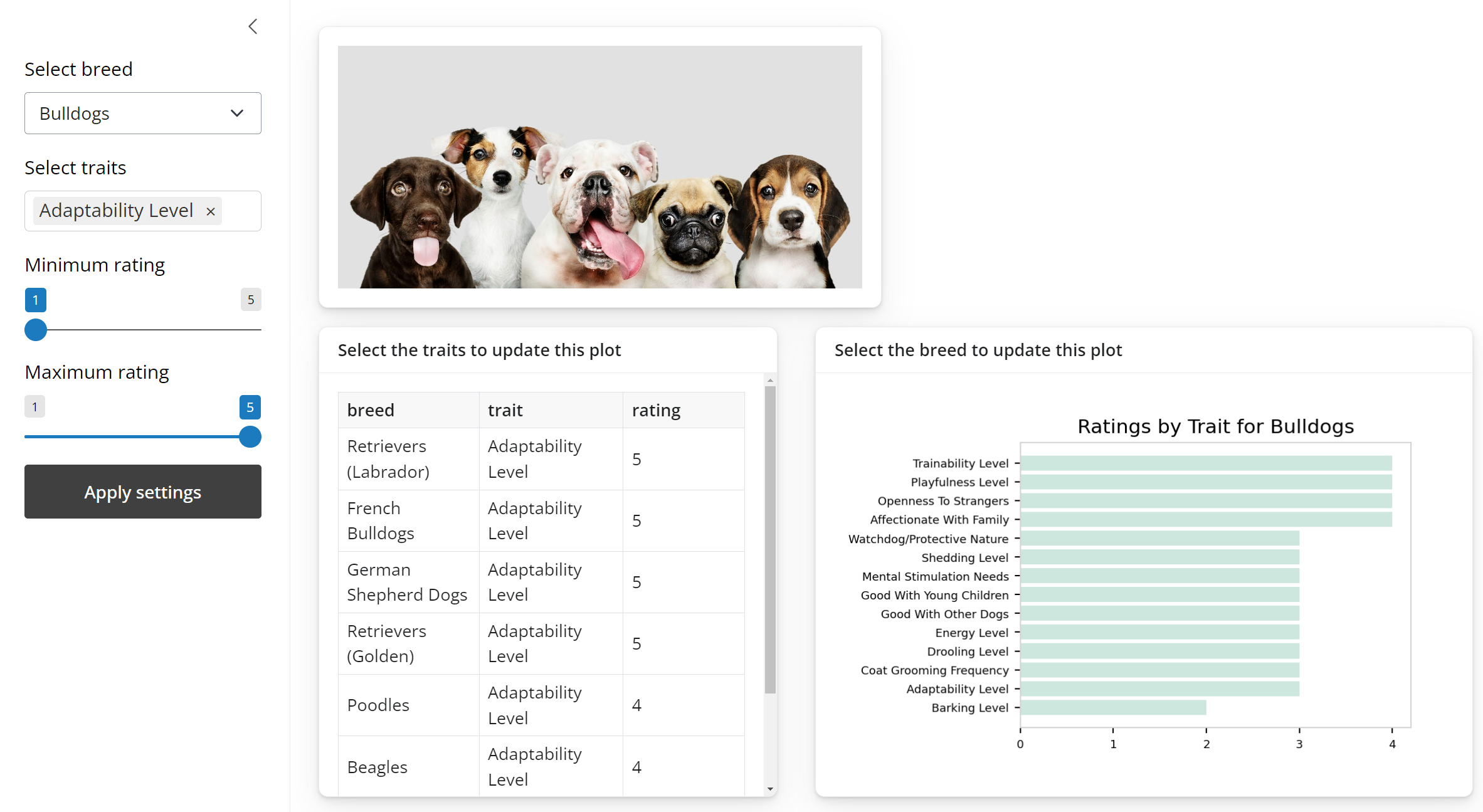

5.1 Using tags to add images

from shiny import App, render, ui, reactive
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()
dogimg_url = "https://camo.githubusercontent.com/97a9cd3442db4582637cacccfc9546801c05c4b98d23c23b85ffde9553a401f3/68747470733a2f2f6d656469612d636c646e72792e732d6e62636e6577732e636f6d2f696d6167652f75706c6f61642f6e657773636d732f323032305f32382f313538373636312f646f67732d6167652d79656172732d6b622d696e6c696e652d3230303730372e6a7067"

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
            ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
            ui.input_action_button("apply", "Apply settings", class_="btn-secondary"),
        ),
        ui.row(
            ui.column(6, ui.card(ui.tags.img(src=dogimg_url, height="100%", width="100%")))
        ),
        ui.layout_columns(
            ui.card(
            ui.card_header("Select the traits to update this plot"),
            ui.output_data_frame("dog_df"),
            ),
            ui.card(
                ui.card_header("Select the breed to update this plot"),
                ui.output_plot("breed_plot")
            ),
            gap = "2rem",
            col_widths={"sm": (5, 7)},
            height = "400px"
        )
    ),
)

def server(input, output, session):
    @reactive.Calc
    def filtered_ratings():
        filtered_rating = df[(df['rating'] >= input.ratingmin()) &
                     (df['rating'] <= input.ratingmax())]
        return filtered_rating.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.data_frame
    @reactive.event(input.apply, ignore_none=False)
    def dog_df():
        filtered_df = filtered_ratings()[(filtered_ratings()['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    @reactive.event(input.apply, ignore_none=False)
    def breed_plot():
        fig = create_trait_rating_plot(filtered_ratings(), input.inputbreed())
        return fig

app = App(app_ui, server)

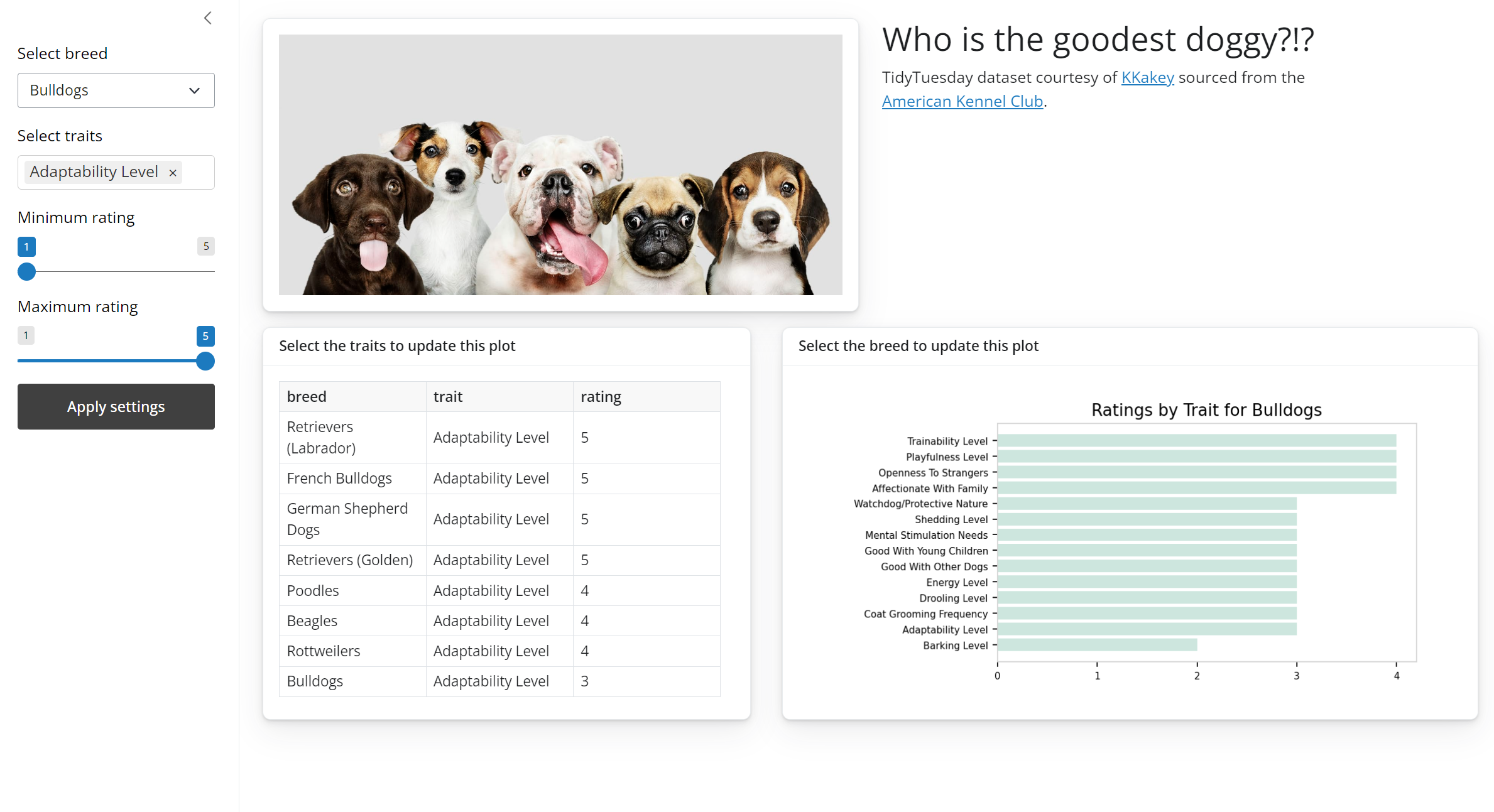

5.2 Tag headings and markdown text

from shiny import App, render, ui, reactive
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()
dogimg_url = "https://camo.githubusercontent.com/97a9cd3442db4582637cacccfc9546801c05c4b98d23c23b85ffde9553a401f3/68747470733a2f2f6d656469612d636c646e72792e732d6e62636e6577732e636f6d2f696d6167652f75706c6f61642f6e657773636d732f323032305f32382f313538373636312f646f67732d6167652d79656172732d6b622d696e6c696e652d3230303730372e6a7067"

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
            ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
            ui.input_action_button("apply", "Apply settings", class_="btn-secondary"),
        ),
        ui.row(
            ui.column(6, ui.card(ui.tags.img(src=dogimg_url, height="100%", width="100%"))),
            ui.column(5,
                ui.tags.h1("Who is the goodest doggy?!?"),
                ui.markdown("TidyTuesday dataset courtesy of [KKakey](https://github.com/kkakey/dog_traits_AKC/blob/main/README.md) sourced from the [American Kennel Club](https://www.akc.org/).")
            ),
        ),
        ui.layout_columns(
            ui.card(
            ui.card_header("Select the traits to update this plot"),
            ui.output_data_frame("dog_df"),
            ),
            ui.card(
                ui.card_header("Select the breed to update this plot"),
                ui.output_plot("breed_plot")
            ),
            gap = "2rem",
            col_widths={"sm": (5, 7)},
            height = "400px"
        )
    ),
)

def server(input, output, session):
    @reactive.Calc
    def filtered_ratings():
        filtered_rating = df[(df['rating'] >= input.ratingmin()) &
                     (df['rating'] <= input.ratingmax())]
        return filtered_rating.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.data_frame
    @reactive.event(input.apply, ignore_none=False)
    def dog_df():
        filtered_df = filtered_ratings()[(filtered_ratings()['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    @reactive.event(input.apply, ignore_none=False)
    def breed_plot():
        fig = create_trait_rating_plot(filtered_ratings(), input.inputbreed())
        return fig

app = App(app_ui, server)

6.0 Panels

6.1 Draggable panels

from shiny import App, render, ui, reactive
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()
dogimg_url = "https://camo.githubusercontent.com/97a9cd3442db4582637cacccfc9546801c05c4b98d23c23b85ffde9553a401f3/68747470733a2f2f6d656469612d636c646e72792e732d6e62636e6577732e636f6d2f696d6167652f75706c6f61642f6e657773636d732f323032305f32382f313538373636312f646f67732d6167652d79656172732d6b622d696e6c696e652d3230303730372e6a7067"

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
            ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
            ui.input_action_button("apply", "Apply settings", class_="btn-secondary"),
        ),
        ui.row(
            ui.column(6, ui.card(ui.tags.img(src=dogimg_url, height="100%", width="100%"))),
            ui.column(5,
                ui.panel_absolute(
                    ui.panel_well(
                        ui.tags.h1("Who is the goodest doggy?!?"),
                        ui.markdown("TidyTuesday dataset courtesy of [KKakey](https://github.com/kkakey/dog_traits_AKC/blob/main/README.md) sourced from the [American Kennel Club](https://www.akc.org/).")
                    ),
                    width="450px",
                    right="75px",
                    draggable=False,
                )
            ),
        ),
        ui.layout_columns(
            ui.card(
            ui.card_header("Select the traits to update this plot"),
            ui.output_data_frame("dog_df"),
            ),
            ui.card(
                ui.card_header("Select the breed to update this plot"),
                ui.output_plot("breed_plot")
            ),
            gap = "2rem",
            col_widths={"sm": (5, 7)},
            height = "400px"
        )
    ),
)

def server(input, output, session):
    @reactive.Calc
    def filtered_ratings():
        filtered_rating = df[(df['rating'] >= input.ratingmin()) &
                     (df['rating'] <= input.ratingmax())]
        return filtered_rating.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.data_frame
    @reactive.event(input.apply, ignore_none=False)
    def dog_df():
        filtered_df = filtered_ratings()[(filtered_ratings()['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    @reactive.event(input.apply, ignore_none=False)
    def breed_plot():
        fig = create_trait_rating_plot(filtered_ratings(), input.inputbreed())
        return fig

app = App(app_ui, server)

6.2 Conditional panels

from shiny import App, render, ui, reactive
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()
dogimg_url = "https://camo.githubusercontent.com/97a9cd3442db4582637cacccfc9546801c05c4b98d23c23b85ffde9553a401f3/68747470733a2f2f6d656469612d636c646e72792e732d6e62636e6577732e636f6d2f696d6167652f75706c6f61642f6e657773636d732f323032305f32382f313538373636312f646f67732d6167652d79656172732d6b622d696e6c696e652d3230303730372e6a7067"

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_checkbox("show", "Set limits for ratings", False),
            ui.panel_conditional(
                "input.show",
                ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
                ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
            ),
            ui.input_action_button("apply", "Apply settings", class_="btn-secondary"),
        ),
        ui.row(
            ui.column(6, ui.card(ui.tags.img(src=dogimg_url, height="100%", width="100%"))),
            ui.column(5,
                ui.panel_absolute(
                    ui.panel_well(
                        ui.tags.h1("Who is the goodest doggy?!?"),
                        ui.markdown("TidyTuesday dataset courtesy of [KKakey](https://github.com/kkakey/dog_traits_AKC/blob/main/README.md) sourced from the [American Kennel Club](https://www.akc.org/).")
                    ),
                    width="450px",
                    right="75px",
                    draggable=False,
                )
            ),
        ),
        ui.layout_columns(
            ui.card(
            ui.card_header("Select the traits to update this plot"),
            ui.output_data_frame("dog_df"),
            ),
            ui.card(
                ui.card_header("Select the breed to update this plot"),
                ui.output_plot("breed_plot")
            ),
            gap = "2rem",
            col_widths={"sm": (5, 7)},
            height = "400px"
        )
    ),
)

def server(input, output, session):
    @reactive.Calc
    def filtered_ratings():
        filtered_rating = df[(df['rating'] >= input.ratingmin()) &
                     (df['rating'] <= input.ratingmax())]
        return filtered_rating.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.data_frame
    @reactive.event(input.apply, ignore_none=False)
    def dog_df():
        filtered_df = filtered_ratings()[(filtered_ratings()['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    @reactive.event(input.apply, ignore_none=False)
    def breed_plot():
        fig = create_trait_rating_plot(filtered_ratings(), input.inputbreed())
        return fig

app = App(app_ui, server)

7.0 Themes

7.1 Updating sidebar color scheme

from shiny import App, render, ui, reactive
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()
dogimg_url = "https://camo.githubusercontent.com/97a9cd3442db4582637cacccfc9546801c05c4b98d23c23b85ffde9553a401f3/68747470733a2f2f6d656469612d636c646e72792e732d6e62636e6577732e636f6d2f696d6167652f75706c6f61642f6e657773636d732f323032305f32382f313538373636312f646f67732d6167652d79656172732d6b622d696e6c696e652d3230303730372e6a7067"

app_ui = ui.page_fillable(
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_checkbox("show", "Set limits for ratings", False),
            ui.panel_conditional(
                "input.show",
                ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
                ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
            ),
            ui.input_action_button("apply", "Apply settings", class_="btn-secondary"),
            bg="#f6e7e8", open="open"
        ),
        ui.row(
            ui.column(6, ui.card(ui.tags.img(src=dogimg_url, height="100%", width="100%"))),
            ui.column(5,
                ui.panel_absolute(
                    ui.panel_well(
                        ui.tags.h1("Who is the goodest doggy?!?"),
                        ui.markdown("TidyTuesday dataset courtesy of [KKakey](https://github.com/kkakey/dog_traits_AKC/blob/main/README.md) sourced from the [American Kennel Club](https://www.akc.org/).")
                    ),
                    width="450px",
                    right="75px",
                    draggable=False,
                )
            ),
        ),
        ui.layout_columns(
            ui.card(
            ui.card_header("Select the traits to update this plot"),
            ui.output_data_frame("dog_df"),
            ),
            ui.card(
                ui.card_header("Select the breed to update this plot"),
                ui.output_plot("breed_plot")
            ),
            gap = "2rem",
            col_widths={"sm": (5, 7)},
            height = "400px"
        )
    ),
)

def server(input, output, session):
    @reactive.Calc
    def filtered_ratings():
        filtered_rating = df[(df['rating'] >= input.ratingmin()) &
                     (df['rating'] <= input.ratingmax())]
        return filtered_rating.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.data_frame
    @reactive.event(input.apply, ignore_none=False)
    def dog_df():
        filtered_df = filtered_ratings()[(filtered_ratings()['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    @reactive.event(input.apply, ignore_none=False)
    def breed_plot():
        fig = create_trait_rating_plot(filtered_ratings(), input.inputbreed())
        return fig

app = App(app_ui, server)

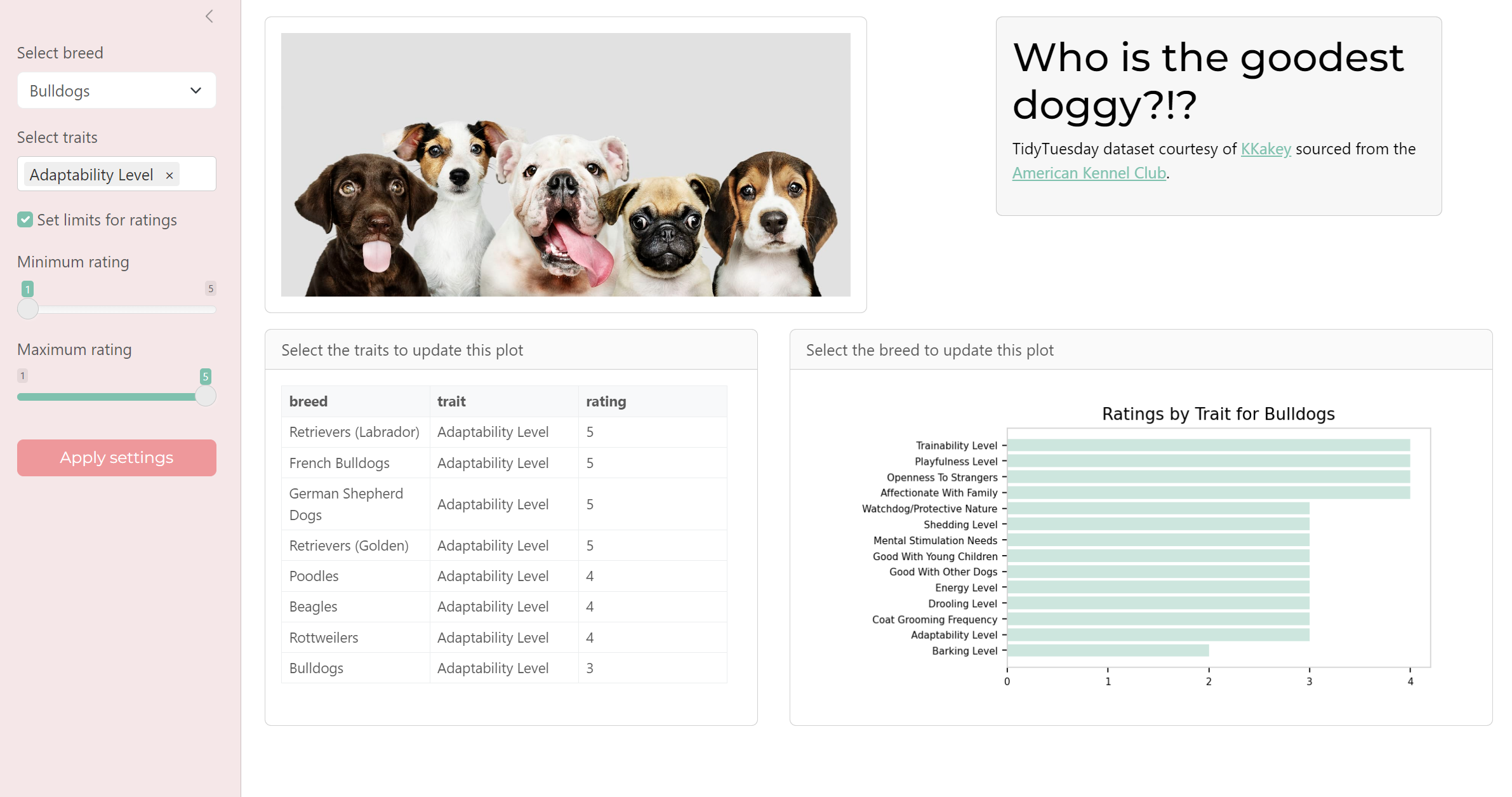

7.2 Updating page theme

from shiny import App, render, ui, reactive
import pandas as pd
from pathlib import Path
from trait_rating_plot import create_trait_rating_plot
from shinyswatch import theme

df = pd.read_csv(Path(__file__).parent / "dog_traits.csv", na_values = "NA")
breeds = df.breed.unique().tolist()
traits = df.trait.unique().tolist()
dogimg_url = "https://camo.githubusercontent.com/97a9cd3442db4582637cacccfc9546801c05c4b98d23c23b85ffde9553a401f3/68747470733a2f2f6d656469612d636c646e72792e732d6e62636e6577732e636f6d2f696d6167652f75706c6f61642f6e657773636d732f323032305f32382f313538373636312f646f67732d6167652d79656172732d6b622d696e6c696e652d3230303730372e6a7067"

app_ui = ui.page_fillable(
    theme.minty(),
    ui.page_sidebar(
        ui.sidebar(
            ui.input_select("inputbreed", label = "Select breed", choices = breeds, selected="Bulldogs"),
            ui.input_selectize(id = "inputtrait", label= "Select traits", choices = traits, multiple=True, selected="Adaptability Level"),
            ui.input_checkbox("show", "Set limits for ratings", False),
            ui.panel_conditional(
                "input.show",
                ui.input_slider(id = "ratingmin", label="Minimum rating", min=1, max=5, value=1),
                ui.input_slider(id = "ratingmax", label="Maximum rating", min=1, max=5, value=5),
            ),
            ui.input_action_button("apply", "Apply settings", class_="btn-secondary"),
            bg="#f6e7e8", open="open"
        ),
        ui.row(
            ui.column(6, ui.card(ui.tags.img(src=dogimg_url, height="100%", width="100%"))),
            ui.column(5,
                ui.panel_absolute(
                    ui.panel_well(
                        ui.tags.h1("Who is the goodest doggy?!?"),
                        ui.markdown("TidyTuesday dataset courtesy of [KKakey](https://github.com/kkakey/dog_traits_AKC/blob/main/README.md) sourced from the [American Kennel Club](https://www.akc.org/).")
                    ),
                    width="450px",
                    right="75px",
                    draggable=False,
                )
            ),
        ),
        ui.layout_columns(
            ui.card(
            ui.card_header("Select the traits to update this plot"),
            ui.output_data_frame("dog_df"),
            ),
            ui.card(
                ui.card_header("Select the breed to update this plot"),
                ui.output_plot("breed_plot")
            ),
            gap = "2rem",
            col_widths={"sm": (5, 7)},
            height = "400px"
        )
    ),
)

def server(input, output, session):
    @reactive.Calc
    def filtered_ratings():
        filtered_rating = df[(df['rating'] >= input.ratingmin()) &
                     (df['rating'] <= input.ratingmax())]
        return filtered_rating.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.data_frame
    @reactive.event(input.apply, ignore_none=False)
    def dog_df():
        filtered_df = filtered_ratings()[(filtered_ratings()['trait'].isin(input.inputtrait()))]
        return filtered_df.sort_values(by=["trait", "rating"], ascending=[True, False])

    @render.plot
    @reactive.event(input.apply, ignore_none=False)
    def breed_plot():
        fig = create_trait_rating_plot(filtered_ratings(), input.inputbreed())
        return fig

app = App(app_ui, server)

We just created this app with “Core Shiny”

But what about Shiny express?

Shiny core and express code structure

CORE
Shiny create -t basic-app
And then select Core Shiny

from shiny import App, render, ui

app_ui = ui.page_fluid(
    ui.panel_title("Hello Shiny!"),
    ui.input_slider("n", "N", 0, 100, 20),
    ui.output_text_verbatim("txt"),
)

def server(input, output, session):
    @render.text
    def txt():
        return f"n*2 is {input.n() * 2}"

app = App(app_ui, server)

Shiny core and express code structure

CORE
Shiny create -t basic-app
And then select Core Shiny

from shiny import App, render, ui

app_ui = ui.page_fluid(
    ui.panel_title("Hello Shiny!"),
    ui.input_slider("n", "N", 0, 100, 20),
    ui.output_text_verbatim("txt"),
)

def server(input, output, session):
    @render.text
    def txt():
        return f"n*2 is {input.n() * 2}"

app = App(app_ui, server)

EXPRESS APP
Shiny create -t basic-app
And then select Shiny Express

from shiny import render, ui
from shiny.express import input

ui.panel_title("Hello Shiny!")
ui.input_slider("n", "N", 0, 100, 20)

@render.text
def txt():
    return f"n*2 is {input.n() * 2}"

Ui and server do not have to be separate in Shiny Express

Shiny create -t basic-app

from shiny import render, ui
from shiny.express import input

ui.panel_title("Hello Shiny!")
ui.input_slider("n", "N", 0, 100, 20)

@render.text
def txt():
    return f"n*2 is {input.n() * 2}"

ui.panel_title("Hello again Shiny!")
ui.input_slider("z", "Z", 50, 100, 70)

@render.text
def txt2():
    return f"Z*3 is {input.z() * 3}"

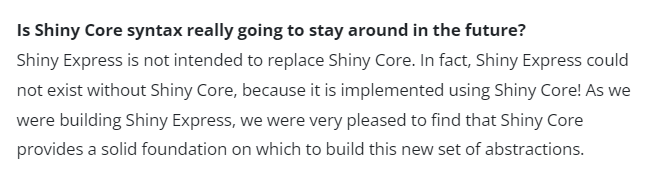

But does that mean Shiny core will go away?

Is Shiny Core gonna stay?
Link: Shiny express announcement

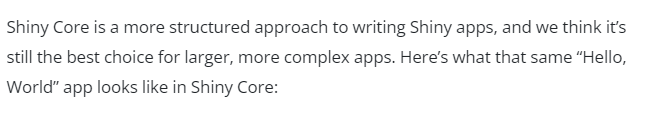

When to use what?
Link: Shiny express announcement

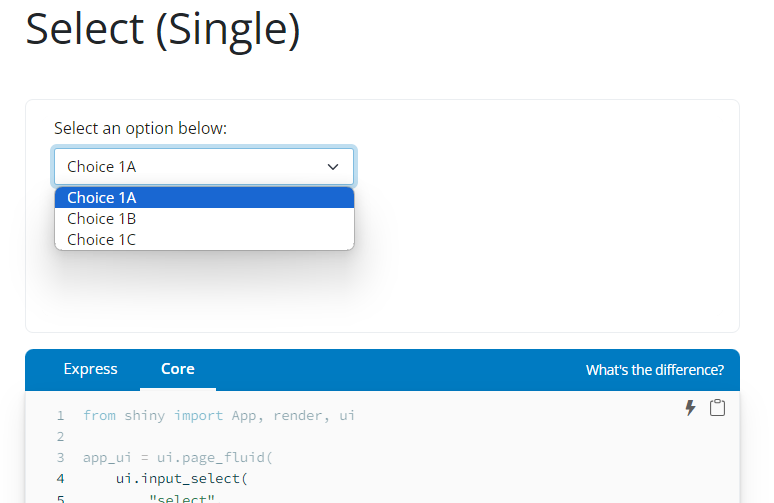

How do I translate from one to another
Link: Shiny code examples

I know that was a lot of information!!!

Resources

• Everything related to this presentation
  • Short Link to presentation - https://bit.ly/shinyforpythonslides
  • Shiny code
  • “Who is the Goodest Doggy” App
• Additional Peeps, resources and events to follow
  • Gordon Shotwell
  • Upcoming Shiny Express webinar by Winston Chang
  • Shiny for python documentation
  • Deploying Shiny for Python application

Let’s connect

Mastodon: @deepsha

LinkedIn: deepshamenghani

Github: deepshamenghani

Slides qr code
